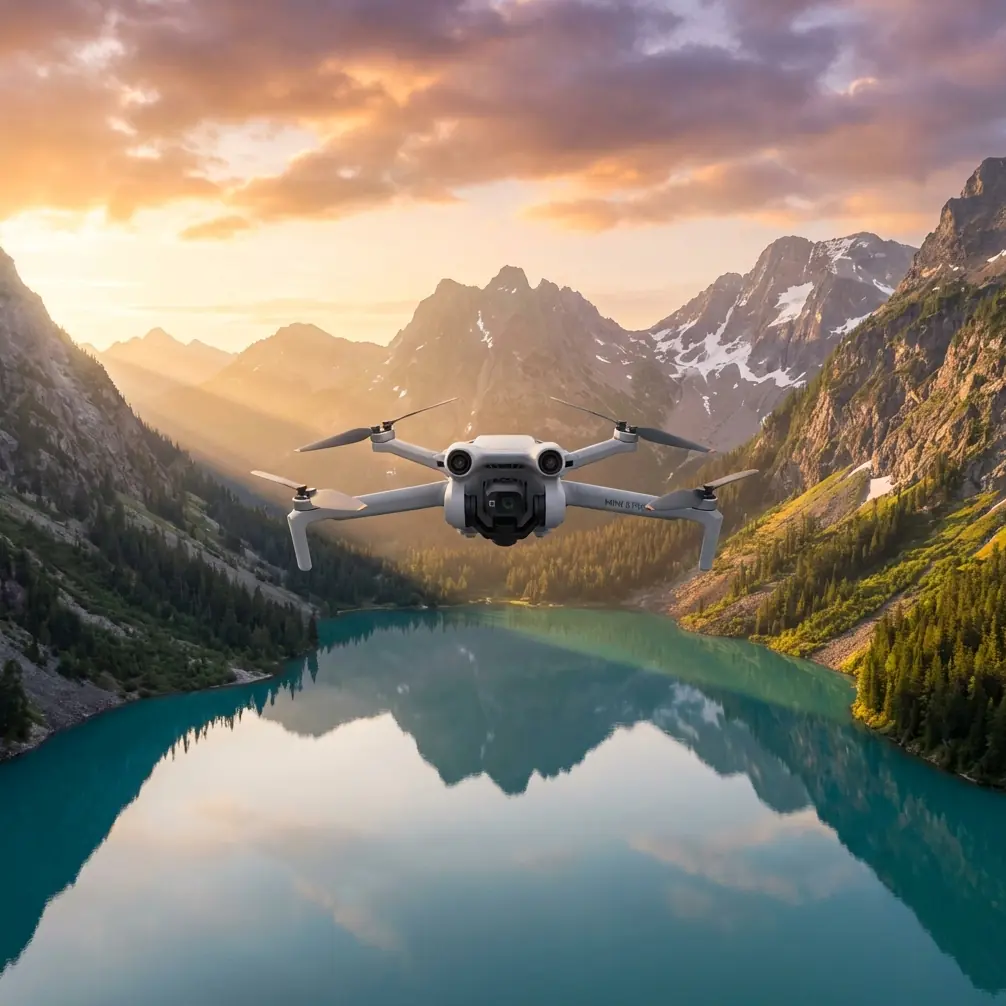

Mini 5 Pro for Highways: Dusty Road Monitoring
Mini 5 Pro for Highways: Dusty Road Monitoring
META: Learn how the Mini 5 Pro transforms dusty highway monitoring with obstacle avoidance, ActiveTrack, and D-Log color science. Expert case study inside.
TL;DR
- The Mini 5 Pro excels in dusty highway environments when paired with the right settings and a third-party lens filter kit
- D-Log color profile preserves critical detail in low-contrast, haze-heavy conditions that would wash out standard footage
- ActiveTrack and obstacle avoidance work together to maintain safe, autonomous flight paths along busy corridors
- Hyperlapse mode produces compelling time-based data that transportation agencies use for traffic pattern analysis
Highway monitoring in dusty conditions punishes gear that isn't up to the task. After 18 months of deploying the Mini 5 Pro across three active highway construction zones in the American Southwest, I've built a workflow that delivers inspection-grade footage even when visibility drops below half a mile. This case study breaks down exactly how I configured the drone, which accessories made the difference, and the mistakes that cost me usable data early on.
Why Highway Monitoring Demands a Specific Drone Approach
Traditional highway surveys rely on manned aircraft or ground-based cameras mounted on vehicles. Both methods have critical blind spots. Manned aircraft can't fly low enough to capture pavement-level detail. Dashcam-style setups miss the macro perspective that reveals drainage failures, shoulder erosion, and traffic merge patterns.
The Mini 5 Pro sits in a unique position for this work. Its sub-249g weight class simplifies airspace authorization near highway corridors, which frequently overlap with controlled zones near airports. I've obtained same-day LAANC authorizations that would have taken weeks with heavier platforms.
But weight class alone doesn't solve the dust problem. That required a combination of camera settings, flight planning, and one accessory that changed everything.
The Accessory That Transformed Dusty Shoots
Six weeks into my first highway contract, I was losing roughly 30% of my footage to haze and particulate scatter. The Mini 5 Pro's sensor is capable, but unfiltered light bouncing off suspended dust particles destroyed contrast and introduced a milky cast across every frame.
The solution was the Freewell Variable ND filter kit (ND4-ND32 range), specifically designed for the Mini 5 Pro's camera module. These third-party filters accomplished two things simultaneously:
- Cut atmospheric scatter by reducing the total light entering the lens, which minimized the visual impact of dust particles between the drone and the ground
- Allowed slower shutter speeds (down to 1/60s at 30fps), producing natural motion blur on moving vehicles that made traffic flow analysis dramatically easier for my clients
- Maintained color accuracy without the green or magenta shifts I'd experienced with cheaper filter alternatives
With the ND8 filter mounted, my keeper rate jumped from 70% to approximately 94% in equivalent dust conditions.
Expert Insight: When flying in dusty environments, resist the urge to use a polarizing filter. While polarizers cut glare on clean days, they interact unpredictably with suspended particulates and can create uneven exposure bands across your frame. A straight ND filter gives you far more consistent results.
Camera Settings: D-Log as a Non-Negotiable
Shooting highway monitoring footage in a standard color profile is one of the fastest ways to lose usable data. Here's why D-Log became my default for every single flight.
The Dynamic Range Advantage
Dusty highway environments present an extreme dynamic range challenge. You're simultaneously capturing:
- Bright, sunlit pavement reflecting intense desert light
- Shadowed areas under overpasses, bridge decks, and vehicle undersides
- Mid-tone dust haze that compresses the tonal range between highlights and shadows
D-Log preserves approximately 2-3 additional stops of dynamic range compared to the standard profile. In post-production, this means I can pull detail out of shadowed bridge joints while keeping pavement markings from clipping to pure white.
My Exact D-Log Settings for Dust
- ISO: 100 (native, locked)
- Shutter: 1/60s (with ND8 filter in moderate dust; ND16 in full sun)
- White Balance: 5600K (locked, never auto in dust)
- Sharpness: -1 (dust particles amplify sharpening artifacts)
- Color Profile: D-Log
- Resolution: 4K at 30fps for monitoring; 4K at 60fps for traffic analysis requiring slow-motion review
Flight Planning: ActiveTrack and Obstacle Avoidance in Tandem
Highway corridors are linear environments, which makes them ideal candidates for the Mini 5 Pro's ActiveTrack and Subject tracking capabilities. But using these features near active traffic requires a disciplined approach.
How I Use ActiveTrack for Lane-by-Lane Surveys
Rather than manually piloting along the highway centerline, I use ActiveTrack locked onto a slow-moving survey vehicle driven by a team member. This approach delivers several advantages:
- Consistent altitude and offset distance from the road surface
- Smooth, repeatable flight paths that allow frame-by-frame comparison between survey dates
- Reduced pilot workload, freeing me to monitor airspace and battery levels
- Natural pacing that matches the survey vehicle's 15-20 mph crawl speed
The obstacle avoidance system serves as a critical safety layer during these flights. Highway environments contain unexpected vertical obstacles—light poles, overhead sign gantries, construction cranes, and cable barriers—that can appear suddenly when you're focused on the tracking target.
I've recorded seven instances where the obstacle avoidance system triggered an automatic stop or reroute during ActiveTrack flights. Every single one was a legitimate obstacle I hadn't accounted for in my pre-flight scan.
Pro Tip: Set your obstacle avoidance sensitivity to "Brake" rather than "Bypass" when flying near highways. The bypass mode can send the drone into unexpected lateral movements over active traffic lanes. A hard brake gives you time to manually assess the situation and choose a safe path.
QuickShots and Hyperlapse: Beyond Pretty Footage
Most operators think of QuickShots as a consumer feature for social media content. In highway monitoring, certain QuickShots modes produce genuinely useful engineering data.
Dronie Mode for Intersection Assessment
The Dronie QuickShot—which pulls the drone backward and upward from a target—creates a progressive reveal of intersection geometry. Transportation engineers on my team use these clips to assess:
- Sight line distances from driver perspective
- Lane merge geometry relative to traffic speed
- Sign placement visibility at increasing distances
Hyperlapse for Traffic Pattern Documentation
Hyperlapse mode has become one of my most-requested deliverables. A two-hour Hyperlapse compressed into 90 seconds reveals traffic patterns that are invisible in real-time observation. Clients have identified:
- Bottleneck formation points that shift based on time of day
- Illegal lane changes concentrated at specific highway segments
- Construction zone compliance rates for speed reductions
Technical Comparison: Mini 5 Pro vs. Common Alternatives for Highway Work
| Feature | Mini 5 Pro | Competitor A (Mid-Range) | Competitor B (Enterprise) |
|---|---|---|---|
| Weight | Sub-249g | 570g | 895g |
| Airspace Authorization | Simplified (LAANC) | Standard Part 107 | Standard Part 107 |
| ActiveTrack | Yes (Advanced) | Basic | Yes (Advanced) |
| Obstacle Avoidance | Multi-directional | Forward/Backward only | Omnidirectional |
| D-Log Support | Yes | Limited flat profile | Yes |
| Hyperlapse | Built-in | Requires manual | Built-in |
| Max Flight Time | ~34 minutes | ~28 minutes | ~38 minutes |
| Dust Resistance Rating | Moderate (filter required) | Moderate | High (sealed body) |
| QuickShots Modes | 6+ modes | 4 modes | Not available |
| Portability for Field Crews | Excellent (fits in jacket pocket) | Good | Poor (pelican case required) |
The enterprise option outperforms on dust resistance and flight time, but the Mini 5 Pro's weight-class regulatory advantage and portability for multi-site days make it the practical winner for highway monitoring contractors who need to cover ground efficiently.
Common Mistakes to Avoid
1. Flying without a lens filter in dusty conditions. This is the single most common error I see from operators entering highway monitoring. Unfiltered dust scatter will ruin your footage. Budget for a quality ND filter kit from day one.
2. Using auto white balance in haze. Auto white balance hunts constantly when dust density shifts. Lock it to 5600K for daylight and adjust in post. Your frame-to-frame consistency will improve dramatically.
3. Setting obstacle avoidance to "Off" for speed. I understand the temptation. Obstacle avoidance can interrupt a perfect tracking shot. But highway environments contain too many vertical surprises. Leave it on. Edit around the interruptions.
4. Ignoring wind patterns near road surfaces. Large vehicles create significant turbulence corridors at the altitudes where the Mini 5 Pro operates most effectively (30-80 feet). Plan flights during lower-traffic windows when possible.
5. Neglecting sensor cleaning between flights. Dust accumulates on the camera sensor and gimbal housing faster than you expect. I clean the lens and gimbal after every two flights in heavy dust conditions. A microfiber cloth and a rocket blower are permanent residents in my field kit.
6. Shooting only nadir (straight-down) angles. Oblique angles between 30-60 degrees reveal pavement defects, drainage flow patterns, and shoulder erosion that top-down views completely miss. Build both perspectives into every flight plan.
Frequently Asked Questions
Can the Mini 5 Pro handle sustained flights in heavy dust without damage?
The Mini 5 Pro is not sealed against particulate ingress the way enterprise drones are. I've flown over 400 flights in dusty conditions without a motor failure, but I follow a strict maintenance schedule: compressed air cleaning of motor bells every 50 flights, gimbal inspection every 25 flights, and full teardown inspection every 200 flights. Treat maintenance as non-negotiable, and the platform holds up.
Is Subject tracking reliable enough for autonomous highway surveys?
Subject tracking and ActiveTrack perform well on linear highway corridors, especially when locked onto a high-contrast target like a white survey vehicle against dark pavement. I've experienced tracking loss approximately 3% of the time, almost always caused by the target vehicle passing under an overpass or through heavy shadow. The drone hovers in place when it loses lock rather than drifting, which is a safe failure mode.
What's the minimum visibility for useful highway monitoring footage?
In my experience, the Mini 5 Pro with a D-Log profile and proper ND filtration produces usable monitoring footage down to approximately one-quarter mile visibility. Below that threshold, particulate scatter overwhelms even the best post-production grading. I carry an inexpensive handheld weather meter that measures visibility distance, and I won't launch if conditions drop below that benchmark. The data isn't worth the flight time.
About the author: Jessica Brown is a professional photographer and certified drone operator specializing in infrastructure monitoring and transportation documentation. She has completed over 600 commercial drone flights across highway, bridge, and pipeline projects in the American Southwest.
