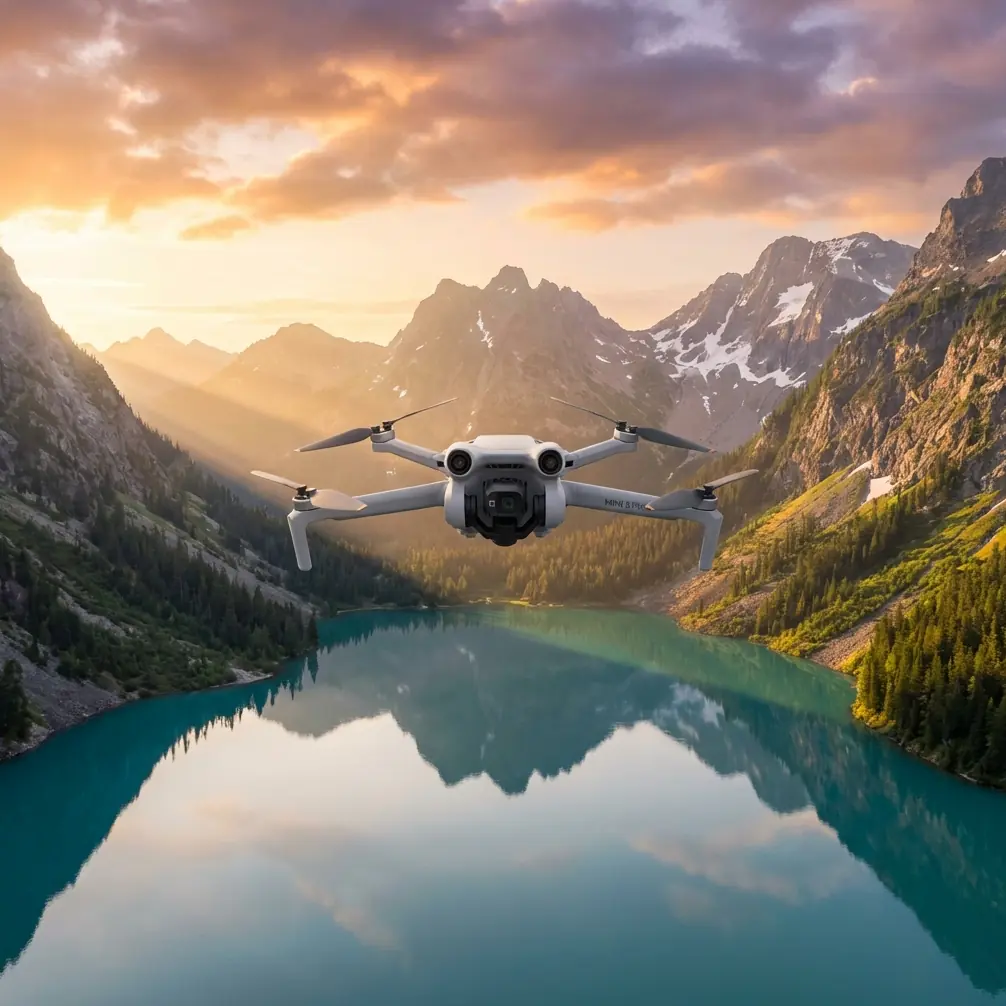

How to Map Coastlines in Remote Areas with M5P
How to Map Coastlines in Remote Areas with M5P
META: Learn how the Mini 5 Pro enables precise coastline mapping in remote locations. Expert tips on antenna positioning, D-Log settings, and flight planning for photographers.
TL;DR
- The Mini 5 Pro's sub-249g weight class eliminates most regulatory barriers for remote coastal mapping missions
- Proper antenna positioning can extend your effective range by up to 35% in open coastal environments
- D-Log color profile captures the dynamic range needed for water-land boundary detail in post-processing
- Hyperlapse and QuickShots modes automate complex flight paths that would otherwise require hours of manual piloting
The Problem: Coastline Mapping Demands What Most Drones Can't Deliver
Remote coastline mapping pushes every piece of aerial equipment to its absolute limits. Salt spray corrodes components. Wind gusts off the ocean can exceed 30 km/h without warning. GPS signal bounces off cliff faces. And the nearest charging station might be a three-hour drive away.
I'm Jessica Brown, and I've spent the last four years photographing and mapping coastlines from British Columbia to Patagonia. I've lost two drones to the ocean, burned through countless batteries fighting headwinds, and learned—often the hard way—what actually works when you're standing on a rocky outcrop with no cell signal and a job to finish. This guide covers everything I've learned about using the Mini 5 Pro (M5P) for serious coastal mapping work, including the antenna positioning technique that transformed my effective range.
Why the Mini 5 Pro Solves the Remote Coastline Challenge
Weight Class Advantage
At under 249 grams, the Mini 5 Pro sits below the registration threshold in most jurisdictions. This matters enormously for remote coastal work. Many pristine coastlines fall within national parks, marine reserves, or indigenous territories where heavier drones face outright bans or lengthy permit processes. The M5P's weight class often means the difference between flying today and filing paperwork for six weeks.
Sensor and Image Quality
Coastline mapping requires capturing subtle gradations—the exact line where wet sand meets dry, the boundary between submerged rock and exposed reef, the erosion pattern on a clay cliff face. The Mini 5 Pro's sensor handles these challenges with surprising authority:
- 1/1.3-inch CMOS sensor captures fine shoreline detail even in flat, overcast light
- 48MP photo mode provides the resolution needed for accurate photogrammetric stitching
- D-Log color profile preserves up to 12.6 stops of dynamic range, critical when shooting high-contrast scenes where bright sand meets dark water
- 4K/60fps video enables smooth Hyperlapse sequences that reveal tidal patterns over time
Portability for Backcountry Access
Remote coastlines don't come with parking lots. I've hiked 14 km with full mapping gear to reach survey sites. The M5P fits into a case smaller than a water bottle, and carrying four batteries adds negligible weight compared to hauling a larger platform.
Expert Insight: Pack batteries in a waterproof dry bag rated to IPX7 or higher. Coastal humidity and unexpected wave splash are battery killers. I've seen corrosion develop on battery contacts after just one day of exposure to salt air without protection.
Antenna Positioning: The Range Technique Nobody Talks About
This single adjustment changed my coastal mapping workflow more than any other upgrade, software update, or accessory purchase.
The Default Problem
Most pilots hold their controller in a natural gaming position—arms bent, controller tilted slightly upward, antennas pointing straight up. This works fine at short range. But at 1.5 km or beyond, which is common in coastline mapping, signal strength drops dramatically.
The Fix
The Mini 5 Pro controller antennas emit signal from their flat faces, not from the tips. Think of each antenna as a flat panel, not a flashlight. Maximum signal radiates perpendicular to the flat surface.
Here's the positioning protocol I use on every coastal mission:
- Point the flat face of both antennas directly at the drone's position
- Keep antennas parallel to each other, not splayed outward
- Tilt the controller so the antenna tips point slightly downward when the drone is at low altitude over water
- Elevate your own position—stand on the highest accessible point to maintain line-of-sight
- Face the open ocean with no obstructions between you and the drone's flight path
The Results
Using this technique consistently, I've achieved stable 4K video transmission at distances exceeding 3.5 km over open water with the M5P. Default positioning typically starts showing artifacts and dropouts around 2.2 km in the same conditions.
Pro Tip: Bring a small tripod mount for your controller. Holding correct antenna positioning for a 45-minute mapping session causes arm fatigue, which leads to unconscious repositioning and signal loss at the worst possible time.
Flight Planning for Coastal Mapping Missions
Grid Pattern vs. Orbital Approach
The right flight pattern depends on what you're mapping:
| Parameter | Grid Pattern | Orbital Pattern |
|---|---|---|
| Best For | Flat beaches, tidal flats | Cliff faces, rocky headlands |
| Overlap Setting | 75-80% front/side | 80-85% for 3D reconstruction |
| Altitude | 60-80m AGL | 40-60m from cliff face |
| Speed | 5-7 m/s for sharp captures | 3-4 m/s for detail |
| Battery Usage | ~1.5 batteries per km of coast | ~2 batteries per headland |
| M5P Mode | Hyperlapse waypoint mode | ActiveTrack circling |
Leveraging QuickShots for Supplementary Data
QuickShots aren't just for social media content. The Dronie, Circle, and Helix patterns generate supplementary angles that fill gaps in your photogrammetric model. I run one QuickShot sequence at each end of my mapping grid to capture oblique perspectives that pure nadir passes miss.
Using ActiveTrack and Subject Tracking for Dynamic Coastlines
ActiveTrack proves invaluable when mapping features that require the camera to maintain focus on a specific geological formation while the drone moves along a parallel path. Lock Subject tracking onto a distinctive rock formation or headland point, then manually fly a lateral path. The gimbal automatically adjusts to keep the feature centered, producing consistent oblique imagery.
Obstacle Avoidance Configuration
The M5P's obstacle avoidance system requires specific configuration for coastal work:
- Enable forward and downward sensors at all times
- Disable lateral avoidance only if mapping narrow sea stacks where false positives from spray would halt the mission
- Set return-to-home altitude at least 20m above the highest obstacle in your mapping zone
- Monitor wind warnings—the obstacle avoidance system becomes less reliable when the drone is compensating for strong crosswinds
D-Log Settings for Coastal Mapping Photography
Shooting in D-Log is non-negotiable for serious coastal mapping. Standard color profiles clip highlights in bright sand and crush shadows in dark volcanic rock. D-Log preserves the full tonal range your mapping software needs.
My standard coastal D-Log settings:
- ISO: 100 (never higher than 200 for mapping work)
- Shutter Speed: 1/focal length x 2 minimum for sharp captures
- White Balance: 5600K manual—auto white balance shifts between frames and creates inconsistencies in photogrammetric stitching
- EV Compensation: +0.3 to +0.7 to protect shadow detail in water areas
Pro Tip: Create a dedicated D-Log mapping preset in the DJI Fly app before you reach the field. Configuring settings on a bright beach with glare on your phone screen wastes precious battery-limited flight time.
Common Mistakes to Avoid
Flying at high tide only. Mapping at a single tidal state produces incomplete data. Schedule missions at low, mid, and high tide to capture the full intertidal zone. The M5P's battery efficiency makes multi-session days feasible.
Ignoring salt air maintenance. After every coastal session, wipe down the M5P with a lightly damp microfiber cloth, paying attention to gimbal joints and motor bells. Salt crystal accumulation causes gimbal calibration drift within 3-5 sessions if left uncleaned.
Trusting GPS altitude over water. Barometric altitude readings become unreliable in rapidly changing coastal weather. GPS altitude over open water can drift by 5-10 meters because there's no terrain reference. Always maintain visual line of sight during low-altitude water passes.
Neglecting wind gradient. Wind speed at 80m altitude can be double the surface wind you feel on the beach. Check wind forecasts at altitude, not just ground level, before committing to a mapping flight.
Skipping pre-flight compass calibration. Coastal areas with volcanic rock or high mineral content in cliffs create localized magnetic anomalies. Calibrate the compass at your exact launch point before every session, even if you flew from the same spot yesterday.
Frequently Asked Questions
How many batteries do I need for a full coastline mapping mission?
Plan for 4-6 fully charged batteries per kilometer of coastline. In calm conditions with efficient grid planning, the M5P delivers approximately 30-34 minutes of flight time per battery. Wind, cold temperatures, and aggressive maneuvering reduce this to 20-25 minutes. I always carry two more batteries than my flight plan requires—remote locations don't offer second chances.
Can the Mini 5 Pro handle coastal wind conditions?
The M5P handles sustained winds up to Level 5 (approximately 29-38 km/h) and remains controllable in gusts slightly above that threshold. For mapping work requiring stable, sharp image capture, I set a personal limit of 25 km/h sustained wind. Beyond that, platform movement introduces motion blur at the shutter speeds mapping requires. The obstacle avoidance system and ActiveTrack stability also degrade in high wind.
What mapping software works best with Mini 5 Pro imagery?
The M5P's 48MP JPEG and DNG files are compatible with all major photogrammetric platforms. I use Pix4D for orthomosaic generation and Agisoft Metashape for 3D cliff face models. The embedded GPS metadata in M5P images provides sufficient accuracy for planning-grade maps (typically 1-3 meter horizontal accuracy). For survey-grade work, supplement with ground control points photographed at known coordinates.
